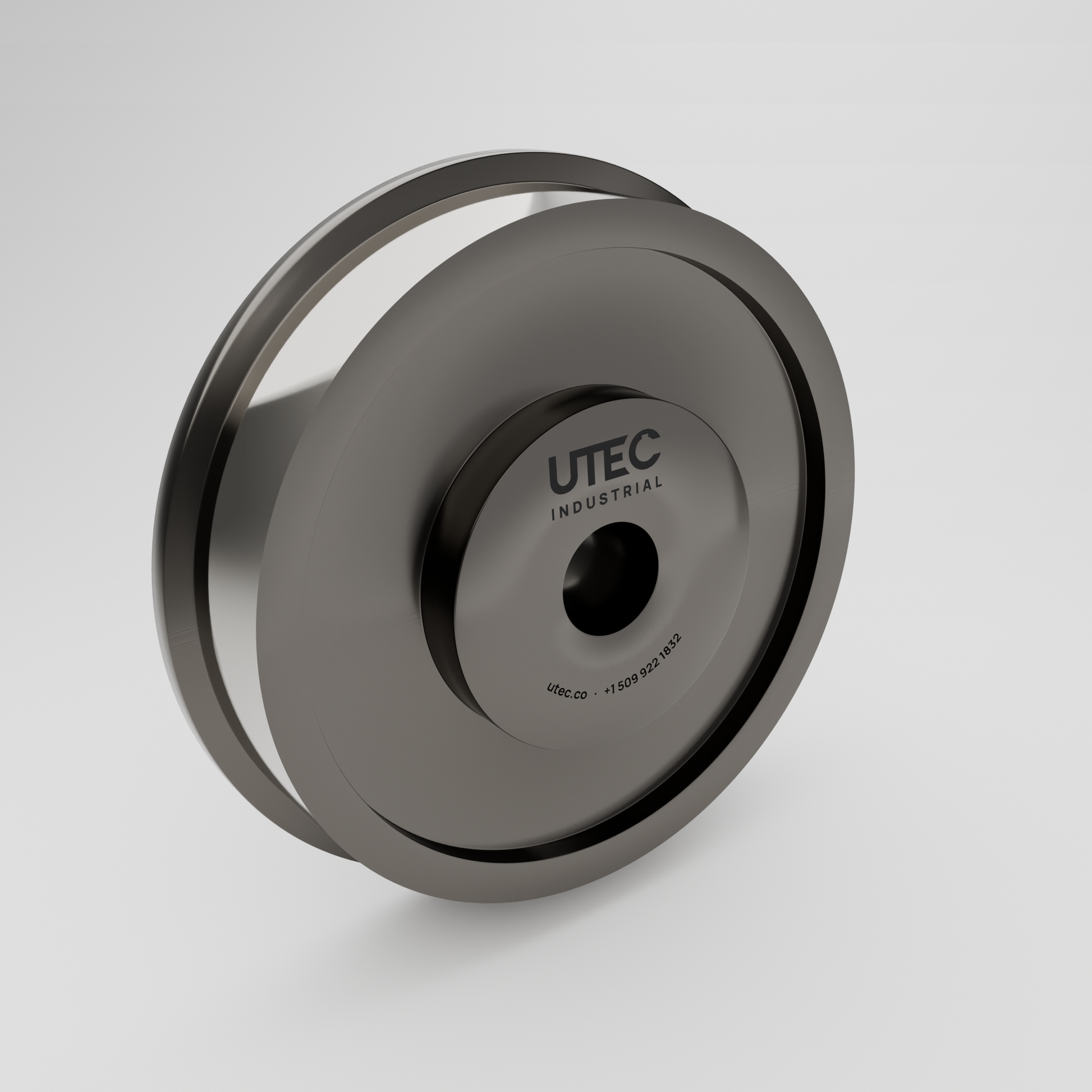

24" Single-Flanged Industrial Wheel — 4.375" Tread, 12" Hub Dia.

24" Single-Flanged Industrial Wheel — 4.375" Tread, 12" Hub Dia.

$5,088.96 USD
$5,088.96 USD
Sale Sold out
Price subject to confirmation by UTEC engineering.
Shipping calculated at checkout.

A single-flanged industrial wheel with 24″ diameter, a 3.84″ bore, weighing approximately 615 lb. A single flange guides the wheel against one side of the rail or track, which suits material-handling transfer cars and powered industrial equipment.

UTEC Industrial precision-machines this wheel from high-alloy, fine-grain steel billets, then performs in-house induction hardening with controlled case depth and hardness verification before shipment. Full raw material chemistry documentation — the complete chemical composition of the steel — is available with every order. UTEC has manufactured crane wheels and sheaves in the United States since 1983.

Typical service is transfer cars, material-handling carriages, and powered industrial travel. See UTEC’s industrial wheel technical references for guidance on bore fit, flange clearance, and tread hardness.

This wheel is one standard configuration. Approximately 90% of UTEC's production is built to customer drawings or reverse-engineered from worn samples, so dimensions, alloy, hardness target, and heat treatment can all be changed. Configure this wheel →

View full details

Specifications

Configuration
ConfigurationSingle-flanged industrial wheel
ApplicationIndustrial
Mounting & bore
BoreSmooth (as-cataloged)
Bore diameter3.84 in
Bore toleranceStandard (±0.001″)
Hub length7.5 in
Hub profileFlat
Tread & flange detail
Flange count1 flange
Tread profileStraight
Tread diameter24.0 in
Tread width4.34375 in
Rim width5.5 in
Flange diameter26.0 in
Flange height1.0 in
Surface & finish
Surface treatmentSurface hardened — standard service
Tread hardness34-44 HRC
Face recessStandard — annular recess on each rim face
Material & origin
MaterialHigh-alloy, fine-grain steel
Material chemistry documentationIncluded with every order
Approx. weight615.0 lb
Made inMade in USA
ManufacturerUTEC Industrial
Standards & compliance
Complies withASTM A-504, AIST T.R. #6

Configure Your Wheel

The specification above is what this product’s list price covers. The options below are not included — add and price them in the configurator.

Available — configure to add
KeywayANSI B17.1 standard, or a custom width × height
Bearing or bronze bushing boreSlip-fit bearing, press-fit bearing, or pressed bronze bushing
Pre-assembled axleMachined axle fitted to the wheel; optional thermal (heat-shrink) install
Heavy-duty heat treatmentHigher-hardness surface treatment for severe service
Precision bore tolerance±0.0005″ in place of the standard ±0.001″
Special tread profileTapered, crowned, or convex in place of straight
Specified alloyBuilt to a material callout on a drawing, with chemistry documentation
Protective paintShop primer or a specified color
Nondestructive examinationUltrasonic (ASTM A-388), magnetic-particle (ASTM A-275), or dye-penetrant (ASTM E-165)
Expedited productionShorter lead time
Configure this product

Start from this standard configuration and adjust dimensions, bore, hardness, and more — or send a drawing and our team will quote it.
