24" Double-Flanged Crane Wheel — 3" Tread

24" Double-Flanged Crane Wheel — 3" Tread

$4,071.16 USD
$4,071.16 USD
Sale Sold out
Price subject to confirmation by UTEC engineering.
Shipping calculated at checkout.

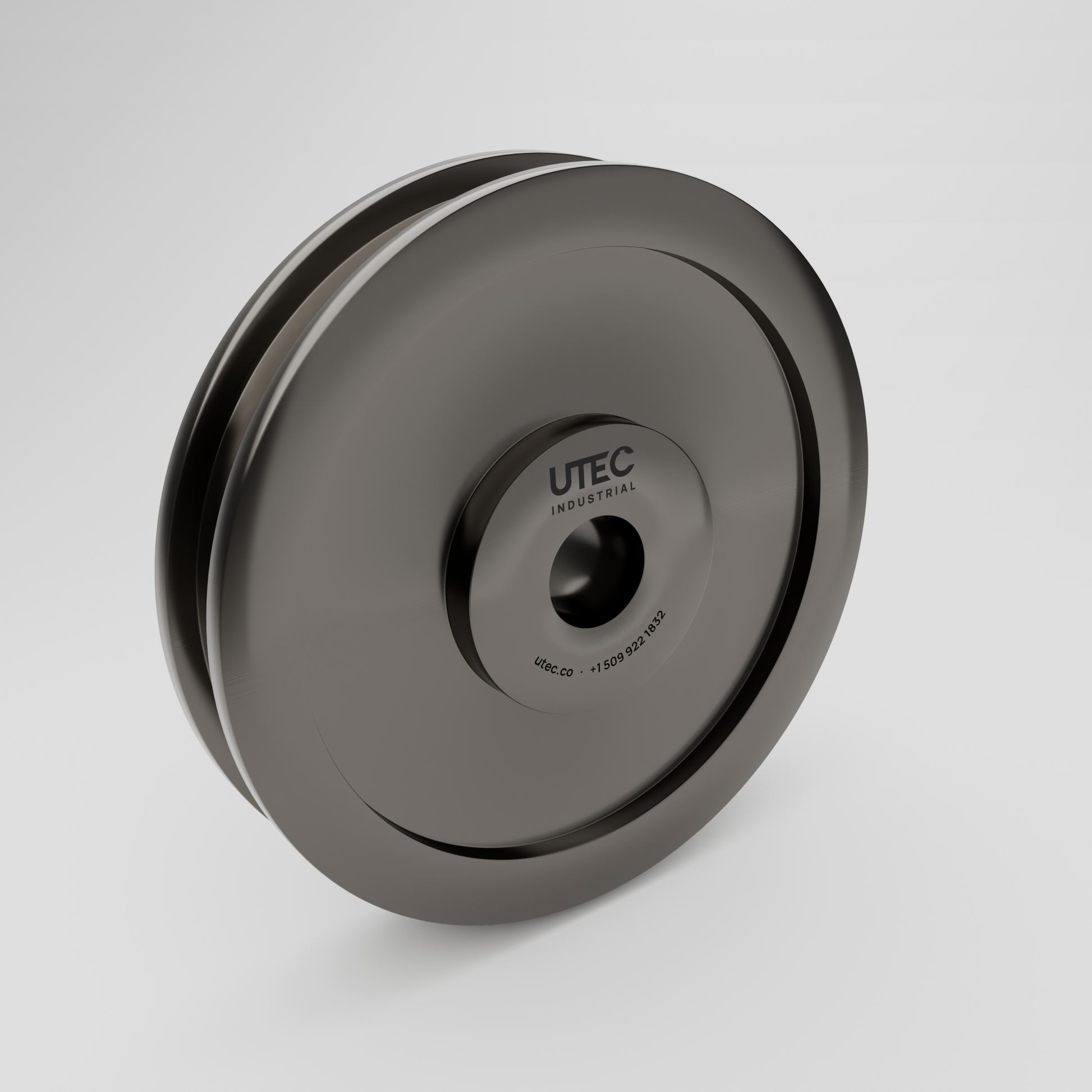

A double-flanged crane wheel with 24″ tread diameter, 3″ tread width, a 3.84″ bore, weighing approximately 545 lb. Double-flanged wheels locate the load on both sides of the rail head, which suits top-running bridge and gantry travel where lateral guidance is required.

UTEC Industrial precision-machines this wheel from high-alloy, fine-grain steel billets, then performs in-house induction hardening with controlled case depth and hardness verification before shipment. Full raw material chemistry documentation — the complete chemical composition of the steel — is available with every order. UTEC has manufactured crane wheels and sheaves in the United States since 1983.

Typical service is overhead and gantry crane travel in steel mills, lumber operations, and general industrial environments. See UTEC’s crane wheel selection and specification guides for matching wheel load, rail, and duty cycle.

This wheel is one standard configuration. Approximately 90% of UTEC's production is built to customer drawings or reverse-engineered from worn samples, so dimensions, alloy, hardness target, and heat treatment can all be changed. Configure this wheel →

View full details

Specifications

Configuration
ConfigurationDouble-flanged crane wheel
ApplicationCrane
Mounting & bore
BoreSmooth (as-cataloged)
Bore diameter3.84 in
Bore toleranceStandard (±0.001″)
Hub length6.0 in
Hub profileFlat
Tread & flange detail
Flange count2 flanges
Tread profileStraight
Tread diameter24.0 in
Tread width3.0 in
Rim width5.0 in
Flange diameter26.0 in
Flange height1.0 in
Surface & finish
Surface treatmentSurface hardened — standard service
Tread hardness34-44 HRC
Face recessStandard — annular recess on each rim face
Material & origin
MaterialHigh-alloy, fine-grain steel
Material chemistry documentationIncluded with every order
Approx. weight545.0 lb
Made inMade in USA
ManufacturerUTEC Industrial
Standards & compliance
Complies withASTM A-504, CMAA 70 §4.13.2, AIST T.R. #6

Configure Your Wheel

The specification above is what this product’s list price covers. The options below are not included — add and price them in the configurator.

Available — configure to add
KeywayANSI B17.1 standard, or a custom width × height
Bearing or bronze bushing boreSlip-fit bearing, press-fit bearing, or pressed bronze bushing
Pre-assembled axleMachined axle fitted to the wheel; optional thermal (heat-shrink) install
Heavy-duty heat treatmentHigher-hardness surface treatment for severe service
Precision bore tolerance±0.0005″ in place of the standard ±0.001″
Special tread profileTapered, crowned, or convex in place of straight
Specified alloyBuilt to a material callout on a drawing, with chemistry documentation
Protective paintShop primer or a specified color
Nondestructive examinationUltrasonic (ASTM A-388), magnetic-particle (ASTM A-275), or dye-penetrant (ASTM E-165)
Expedited productionShorter lead time
Configure this product

Start from this standard configuration and adjust dimensions, bore, hardness, and more — or send a drawing and our team will quote it.
