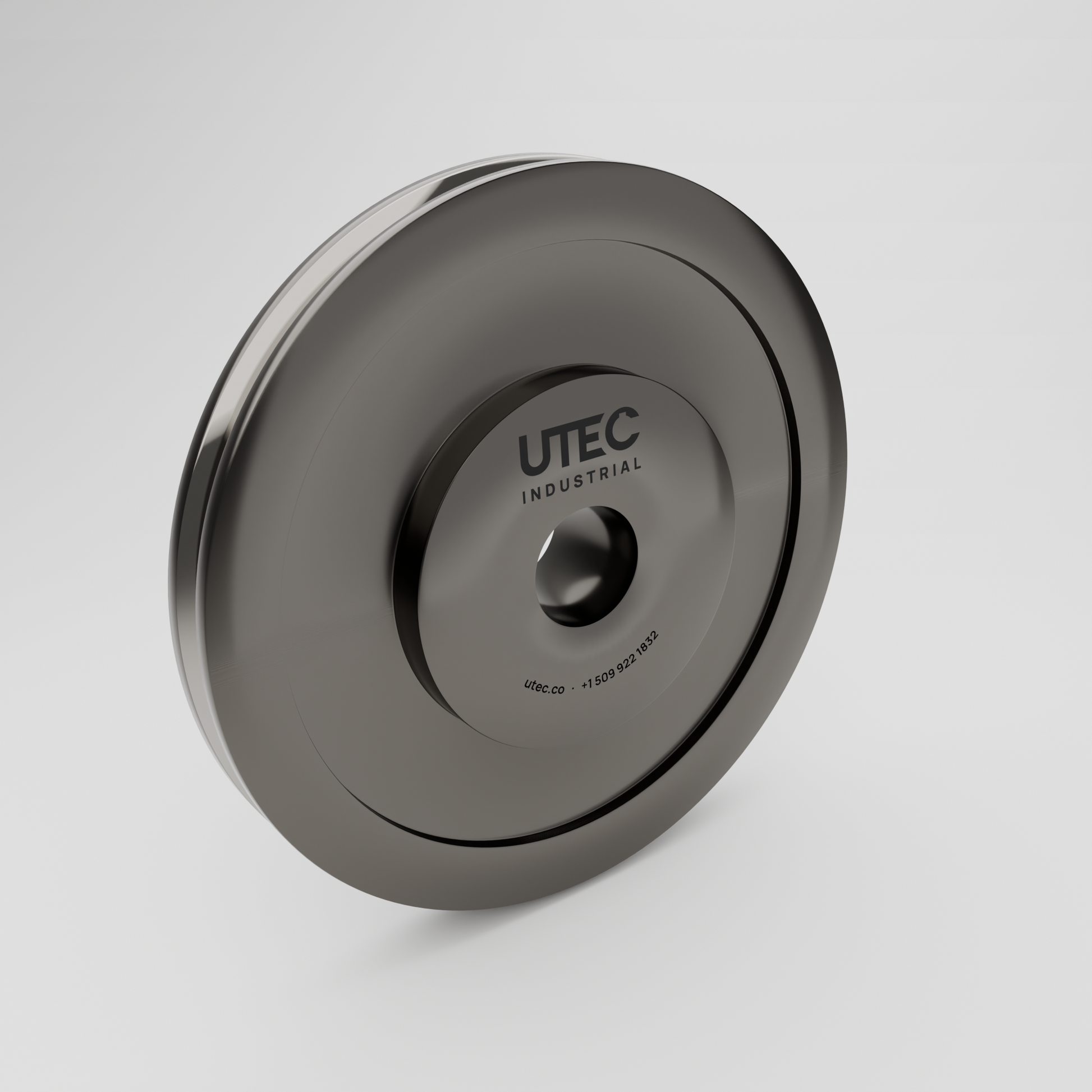

16" Cable Sheave — 0.5" Wire Rope

16" Cable Sheave — 0.5" Wire Rope

$1,559.13 USD
$1,559.13 USD
Sale Sold out
Price subject to confirmation by UTEC engineering.
Shipping calculated at checkout.

A cable sheave with 16″ outside diameter, a 0.5″ wire rope groove, weighing approximately 120 lb. The U-shaped groove is sized to the wire rope diameter to support the rope across the groove radius and limit contact stress and rope wear.

UTEC Industrial precision-machines this sheave from high-alloy, fine-grain steel billets and performs in-house induction hardening of the groove surface with hardness verification before shipment. Full raw material chemistry documentation — the complete chemical composition of the steel — is available with every order. UTEC has manufactured crane wheels and sheaves in the United States since 1983.

Typical service is hoist, crane, and wire-rope reeving systems. See UTEC’s wire rope sheave technical references for guidance on groove geometry and rope sizing.

This sheave is one standard configuration. Approximately 90% of UTEC's production is built to customer drawings or reverse-engineered from worn samples, so dimensions, alloy, hardness target, and heat treatment can all be changed. Configure this sheave →

View full details

Specifications

Configuration
ConfigurationSheave — U-groove
Mounting & bore
BoreSmooth (as-cataloged)
Bore diameter2.56 in
Bore toleranceStandard (±0.001″)
Hub profilePositive step
Groove detail
Outside diameter16.0 in
Wire rope diameter0.5 in
Rim width1.75 in
Pitch diameter (A)15.0 in
Root diameter (B)14.5 in
Groove radius (C)0.28125 in
Groove depth (G)0.75 in
Throat angle35°
Shoulder fillets0.125 in inner, 0.25 in outer
Surface & finish
Surface treatmentSurface hardened — standard service
Groove hardness34-44 HRC
Material & origin
MaterialHigh-alloy, fine-grain steel
Material chemistry documentationIncluded with every order
Approx. weight120.0 lb
Made inMade in USA
ManufacturerUTEC Industrial

Configure Your Sheave

The specification above is what this product’s list price covers. The options below are not included — add and price them in the configurator.

Available — configure to add
KeywayANSI B17.1 standard, or a custom width × height
Bearing or bronze bushing boreSlip-fit bearing, press-fit bearing, or pressed bronze bushing
Precision bore tolerance±0.0005″ in place of the standard ±0.001″
Specified alloyBuilt to a material callout on a drawing, with chemistry documentation
Protective paintShop primer or a specified color
Nondestructive examinationUltrasonic (ASTM A-388), magnetic-particle (ASTM A-275), or dye-penetrant (ASTM E-165)
Expedited productionShorter lead time
Configure this product

Start from this standard configuration and adjust dimensions, bore, hardness, and more — or send a drawing and our team will quote it.
